Hitno potrebna shema za laptop ..

Post by bokin021 » 06 Jan 2015, 15:01

Radi se o laptop MSI MS-16831 ..Ako neko ima shemu ili barem link..

User avatar
alexa_pg
gxu
gxu
Posts: 3226
Joined: 22 Aug 2006, 08:10
Location: Podgorica

Re: Hitno potrebna shema za laptop ..

Post by alexa_pg » 06 Jan 2015, 16:57

Mozda bi valjalo da si napisao koji imas kvar na racunaru. Na forumu ima dobrih strucnjaka informatike. Pretpostavljam da bi neko mogao da ti pomogne i bez seme da rijesis problem.
Alexa

User avatar
milan
gxu
gxu
Posts: 5633
Joined: 19 Aug 2006, 22:38
Location: NOVI SAD

Re: Hitno potrebna shema za laptop ..

Post by milan » 06 Jan 2015, 21:00

Probaj sa ovom dokumentacijom.

Code: Select all

http://elektrotanya.com/msi_cr500_cr600_ms-1683_disassemble_guide.pdf/download.html
i ovom semom
You do not have the required permissions to view the files attached to this post.

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 07 Jan 2015, 13:37

Xristos se rodi!

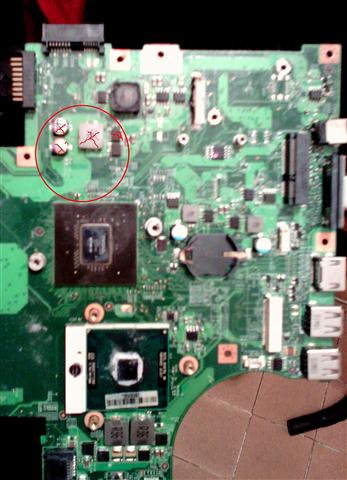

Hvala na shemi ..Vidim da je shema za verziju 1.1 ,a moja je 1.2 ,nadam se da je isto .Ovde na fotografiji sam zaokruzio gde mi je kratak spoj i koji elementi su ,nisam uspeo da ustanovim iako sam skidao kapacitore i kalem cak je fet u spoju ,a kad ga skinem ,ne pokazuje spoj ,mada mesta na kojima je, pokazuje ..Dok nisam dobio shemu, sumjao sam na maxim ali ni on nije problem ..Jos da dodam ,da kad ukljucujem punjac u konektor cuje se skljoc na maticnioj ali jedva cujno ,ne mogu da ustanovim odakle je,takodje se nista ne greje ..
You do not have the required permissions to view the files attached to this post.

daky
gx
gx
Posts: 24
Joined: 31 Dec 2014, 23:07
Location: Novi Sad
Contact person: dalibor
Phone number: 0038163588924
Specialty: tv-multimedia
Location: Novi Sad

Re: Hitno potrebna shema za laptop ..

Post by daky » 09 Jan 2015, 03:38

Kolega ne znam jesili probao sa spravicom- LeakSeeker 89 traziti kvar ...
Dobar je za rad a novi model je osetljiviji dosta. Sustinina celog urdjaja je u pronalazenju i brzom lokalizovanju kratkog spoja kod aktivnih elemenata na MBD plocama za racunare , laptopove i td ...

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 09 Jan 2015, 08:24

Neverovatno ,bas sam juce gledao tu spravici na e bay ..Mozda je kupim deluje mi da radi posao..Kakvo je vase iskustvo?

daky
gx
gx
Posts: 24
Joined: 31 Dec 2014, 23:07
Location: Novi Sad
Contact person: dalibor
Phone number: 0038163588924
Specialty: tv-multimedia
Location: Novi Sad

Re: Hitno potrebna shema za laptop ..

Post by daky » 09 Jan 2015, 08:48

Ja sam koristio stari model i radi ok mogu reci.
Novi model je usavrseniji i osetljiviji...
Cena je jaka malo, nadam se da je opravdana.

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 09 Jan 2015, 11:31

Na kom principu radi ,jer zaista dobar uredjaj?

User avatar
Stolle
Site Admin
Site Admin
Posts: 22292
Joined: 12 Aug 2006, 23:35
Location: Srbija

Re: Hitno potrebna shema za laptop ..

Post by Stolle » 09 Jan 2015, 12:03

bokin021 wrote:...bas sam juce gledao tu spravici na e bay ..
I jesi li je video tamo?
Uputstvo, opis rada:

Code: Select all

http://www.atoz-electronix.com.au/uploads/3/1/8/3/3183965/eds89-om.pdf

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 09 Jan 2015, 12:28

Nisam nasao isti model ,posto je stari ali ima short circuit finder koji rade na istom principu ,ovaj model sam video na elitsecurity forumu..Hvala ma upustvu.

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..Reseno.

Post by bokin021 » 09 Jan 2015, 17:56

Resen problem ,bio je problematican GPU ..Hvala vam svima..

User avatar
stojkePN
____
____
Posts: 2422
Joined: 11 Feb 2007, 04:55
Location: Srbija-Paraćin

Re: Hitno potrebna shema za laptop ..

Post by stojkePN » 09 Jan 2015, 19:23

Izgleda da si merio na opseg Diode ustvari Buzer pa je pistalo kao kratak spoj :mrgreen: Inace ima oko 2-3ohm. :pivopije:
Sto vise ucim sve vise vidim koliko neznam :plaz:

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 09 Jan 2015, 21:40

merio sam na opseg dioda ali je bio spoj ,jer kad sam skinuo gpu spoja vise nema..

User avatar
stojkePN
____
____
Posts: 2422
Joined: 11 Feb 2007, 04:55
Location: Srbija-Paraćin

Re: Hitno potrebna shema za laptop ..

Post by stojkePN » 11 Jan 2015, 17:53

Bas kratak spoj 0ohm ili 2-3ohm :?:
Sto vise ucim sve vise vidim koliko neznam :plaz:

daky
gx
gx
Posts: 24
Joined: 31 Dec 2014, 23:07
Location: Novi Sad
Contact person: dalibor
Phone number: 0038163588924
Specialty: tv-multimedia
Location: Novi Sad

Re: Hitno potrebna shema za laptop ..

Post by daky » 11 Jan 2015, 20:46

Nisam ti odgovorio na postavljeno pitanje kolega @bokin021...

Kolega ,
Odlican instrument … ja imam 89 , trebalo mi je malo vremena da provalim kako funkcionise i zaista je prava stvar kao I tester za elektrolite u kolu esr 88a II

http://eds-inc.com/product/leakseeker-89/

Pozdrav

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 12 Jan 2015, 10:35

Gde si ga kupio ,posto na e bay nisam nasao taj model?

bokin021
_
_
Posts: 268
Joined: 28 Dec 2012, 19:42
Location: Srbija
Specialty: computers

Re: Hitno potrebna shema za laptop ..

Post by bokin021 » 12 Jan 2015, 10:37

stojkePN wrote:Bas kratak spoj 0ohm ili 2-3ohm :?:
Kad spojim pipalice direktno dobijem 17 ili 19 sto znaci ako mi pokaze i na elementu, to je to..
